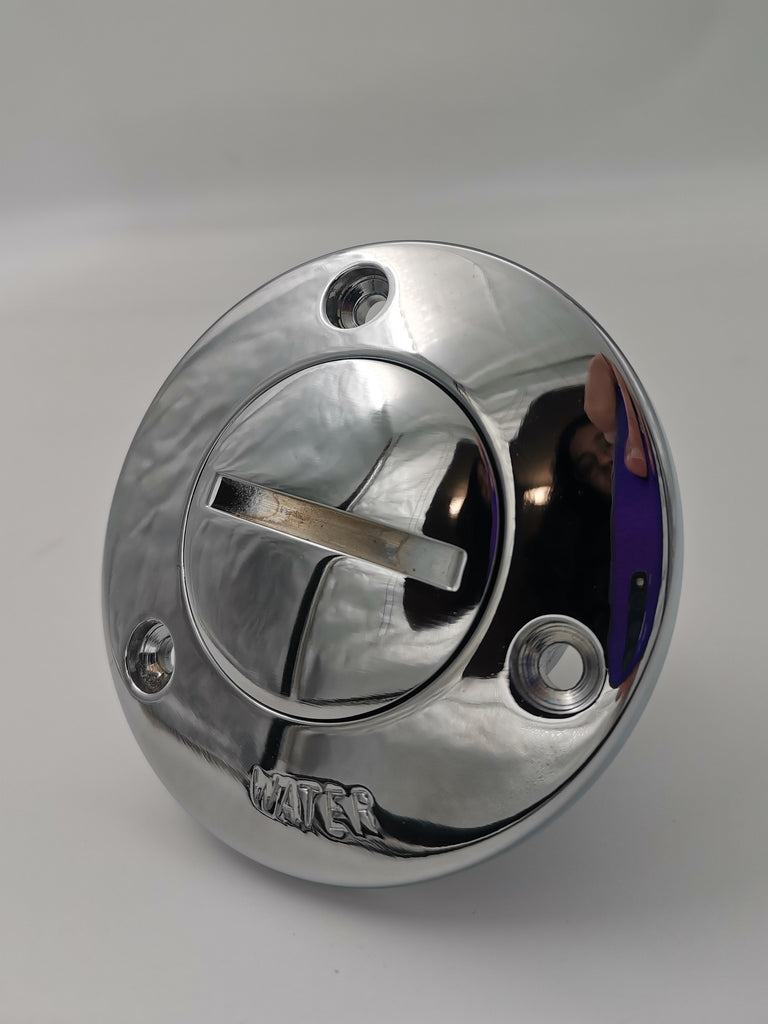

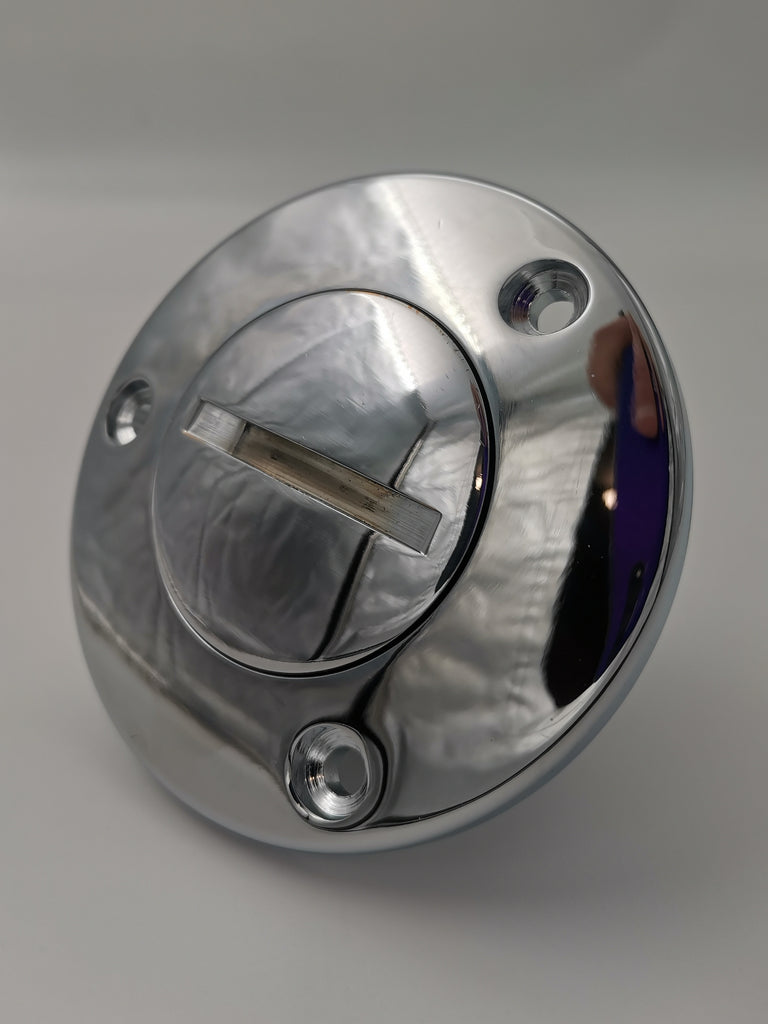

Deck Filler for fuel or water tanks Chrome Bronze 2 sizes

Deck Filler Chrome New Zealand Made.

labelled fuel or water or blank This c/p deck plate is designed to simplify fuel tank installations. Chrome over bronze.

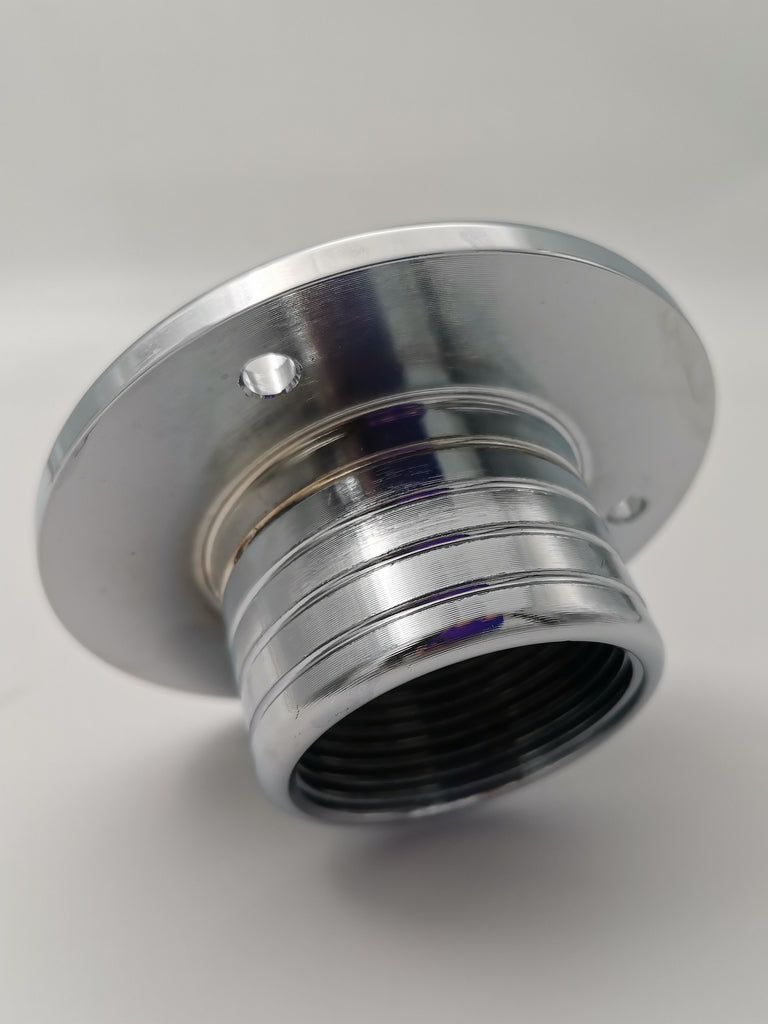

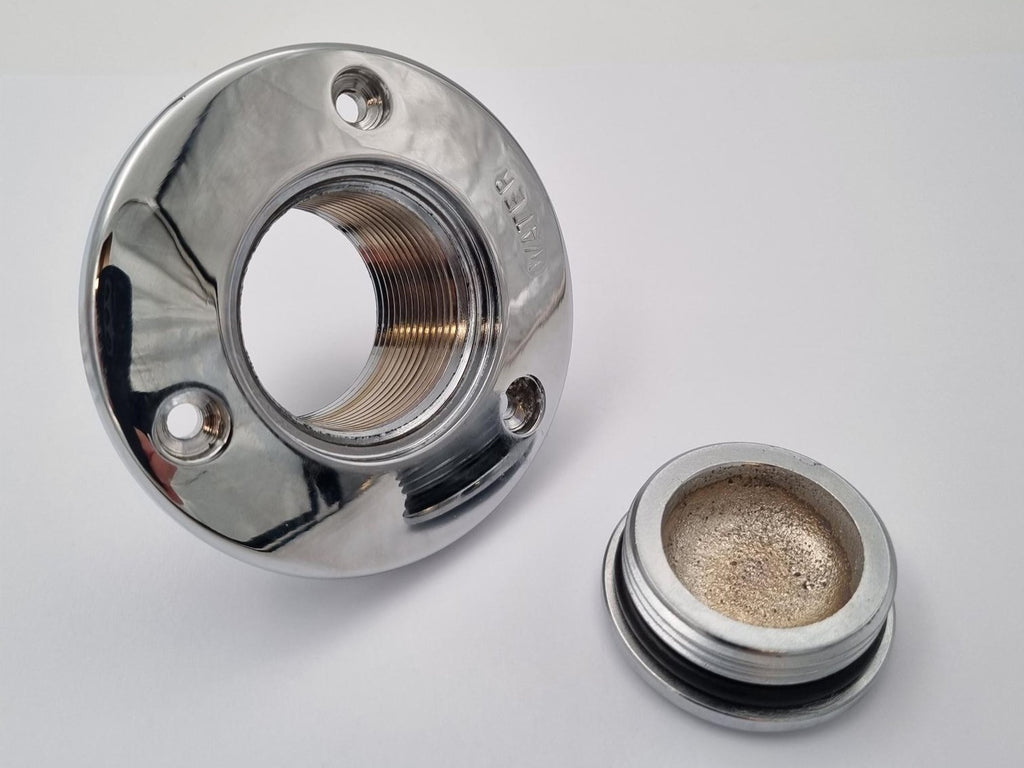

This one piece unit can simply be screwed to the deck. It has an internal BSP thread that you can run a simple hose tail into the thread underneath to attach, or the hose can go over the outside.

It is dome shaped on top, enabling any excess water left around to run off.

Two sizes available :

Part Numbers

• (12702) 1 1/4" bsp internal thread (32mm) Hole cut out in deck required 50mm, overall outside diameter 87mm


• (12704) 2" bsp internal thread (50mm) Hole cut out in deck required 68mm, overall outside diameter 105mm

Please note - BSP sizing is the measurement of the diameter of the flow for the deck fillers corresponding hose tail.

Update - with many NZ foundary's closing we are limited from time to time as to what we have available in this range as to markings of fuel/water or plain. Please feel free to enquire, regardless we will let you know when you order if we cannot oblige.
