Hand Rail Ends and Mids 1 inch 25mm Cylinderical

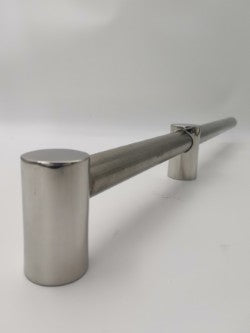

Solid stainless steel pillar type hand rail ends and mids - designed to suit 1" outside diameter hand rail (25.4mm).

The end has a socket in one side only while the mid allows the tube to pass through and be slid to the correct position.

The benefit here is it can be slid to align with a deck beam, or support underneath. And the fastenings (accepts 8mm metric bolts from underneath (concealed)) Thus fastening has to come from beneath.

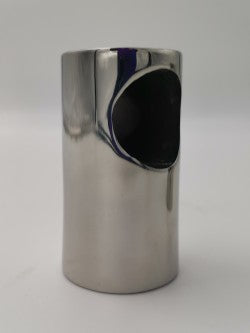

End unit (drilled for handrail tubing on one side) measures 64mm high (from the base to the top) x 35mm outside diameter. The hole for the tubing measures 25.7mm so fits 1" outside diameter tubing which is the standard for New Zealand and Australia in stainless steel (if using aluminium then 25mm is outside diameter and is a bit looser, these are made for stainless steel tubing which we also hold in stock).

Mid unit (drilled for handrail tubing on both sides) measures 64mm high (from the base to the top) x 35mm outside diameter. The hole for the tubing measures 25.7mm so fits 1" outside diameter tubing which is the standard for New Zealand and Australia in stainless steel (if using aluminium then 25mm is outside diameter and is a bit looser, these are made for stainless steel tubing which we also hold in stock).
