Series 70 Navigation Lights Single

Unbreakable and extremely reliable

Application

• All vessels ≥ 20 m in length. Lights marked may also be used on inland waterways without limitation of ship´s length

Housing

• Polycarbonate, glass fibre reinforced, other components of non-corrosive materials. Housing self-ventilated. Nonmagnetic, seawater resistant

Housing colour

• Matte black

Electric

• Conus inclusive 1.5 m special connection cable 2 x 1.5 mm², self-protective insulation, class II

Lamp

• Easy to change special tungsten bulb

Cable insert

• Special cabe gland metric pressure screw M24 x 1.5 with protection against buckling

Mounting

• Base flange attachment, 4 screws (not included). Allround lights may also be hoisted. Additional mounting aids see drawing

Approvals

• International according to IMO Colreg 1972, in Scandinavian countries too, in Germany through BSH, other countries in particular see list of approvals
• US-Coastguard, China Classification Society. These lights may only be used on ships flying the flags of the USA or P.R. China

Min. visibilities

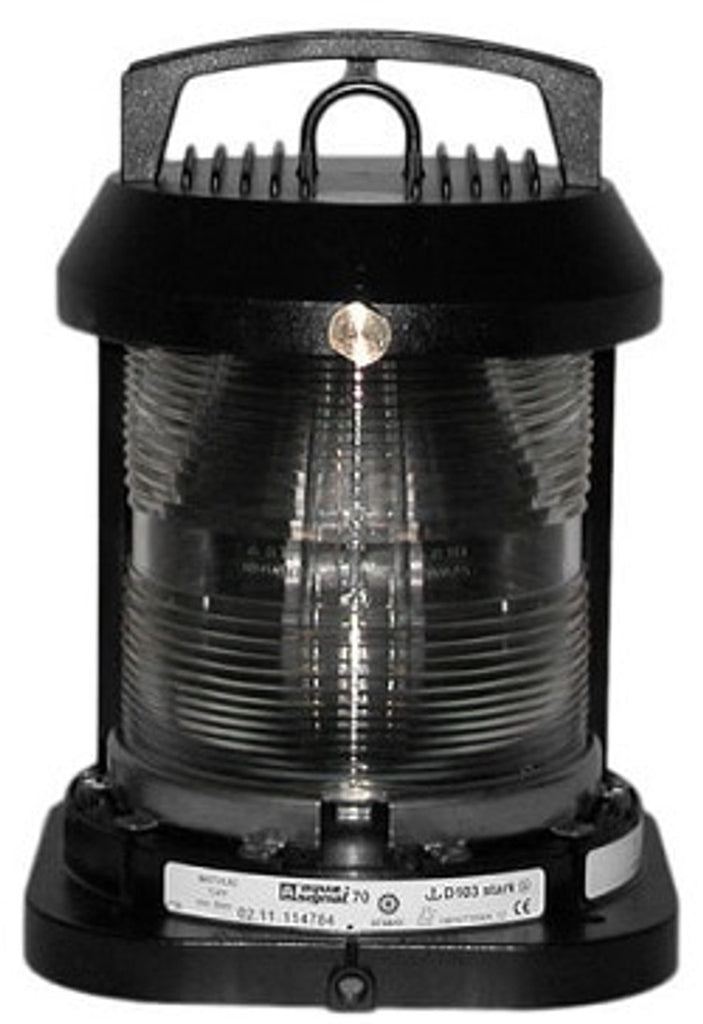

• 3 n.m., masthead light 6 n.m., manoeuvre 5 n.m

Optics

• Seawater resistant, special plastic Fresnel lens
