Stainless Steel Bow Rollers XL and XXL Large

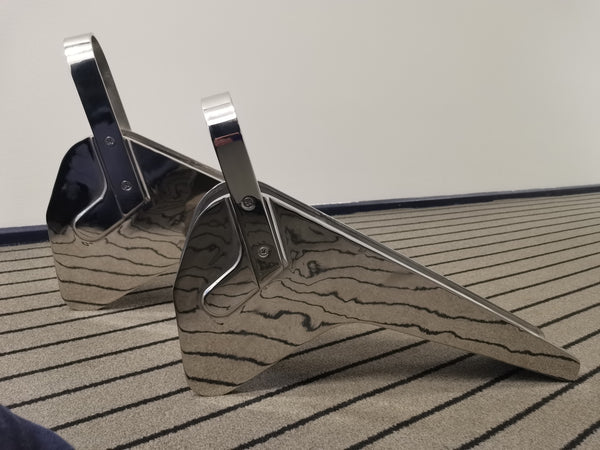

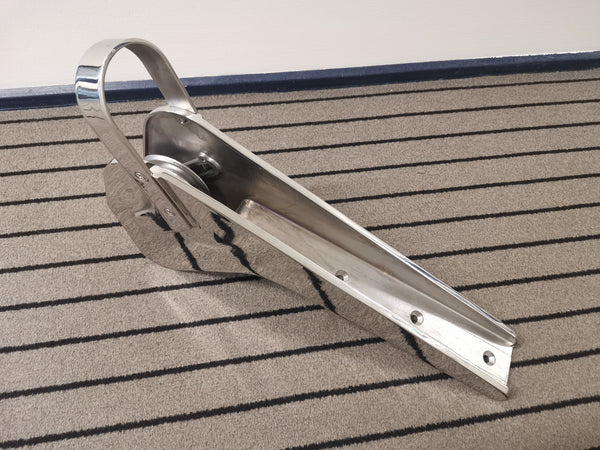

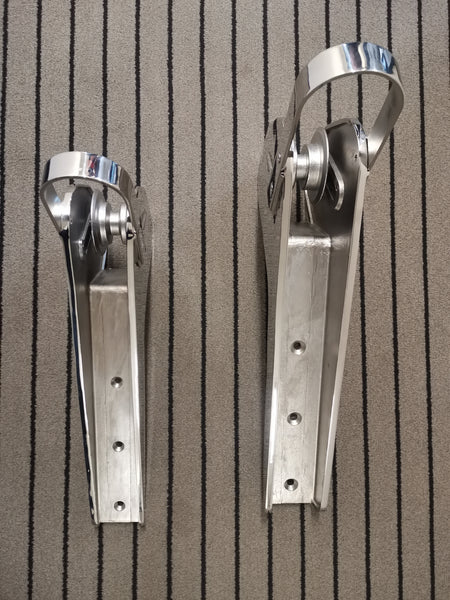

While normal bow rollers for medium duty craft are bent from sheet stainless into a channel shape, these Large Heavy Duty Bow Roller Fairleads, are cast solid stainless steel rather then bent. The casting allows a much heavier profile that naturally conforms 9mm and 10mm wall thickness.

A keeper who is fastened to retain the anchor when on deck. The roller itself on the smaller unit will accept up to 10mm chain, while the larger unit will accept up to 12mm chain.

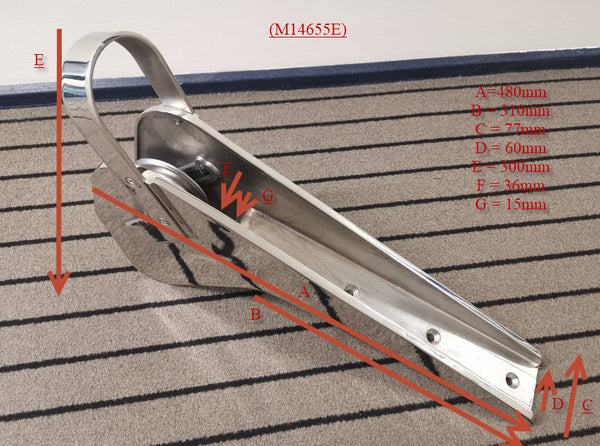

(M14655E)

480mmLong overall x 310mm long flat x 77mm wide O/D x 60mm wide I/D x 300mm high

Suits up to 10mm chain

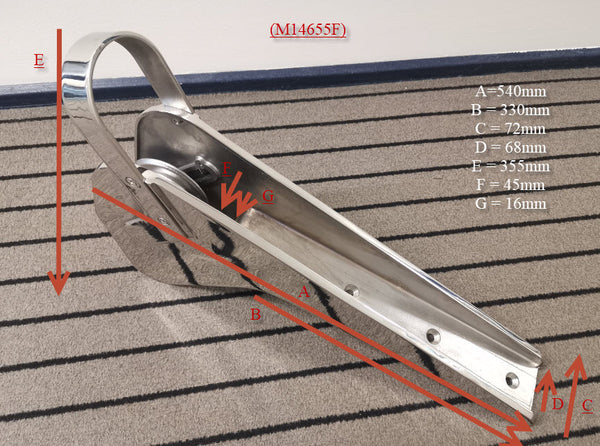

(M14655F)

540mmLong overall x 330mm long flat x 72mm wide O/D x 68mm wide I/D x 355mm high

Suits up to 12mm chain
