Washdown Quick Release Connector

$261.86
(M11767A)

Connects and disconnects under full pressure

Positive lock bayonet connector

For use with Hose Coil Washdown hoses

Connections:

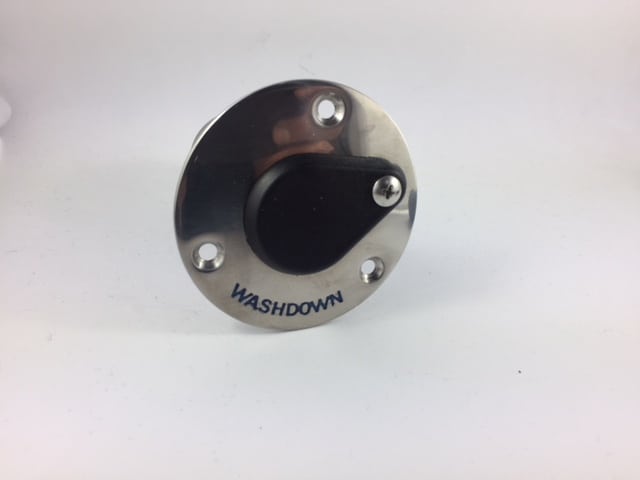

    • Deck fitting: 13mm (1/2" BSP) female
    • Bayonet: 19mm (3/4"BSP) Male

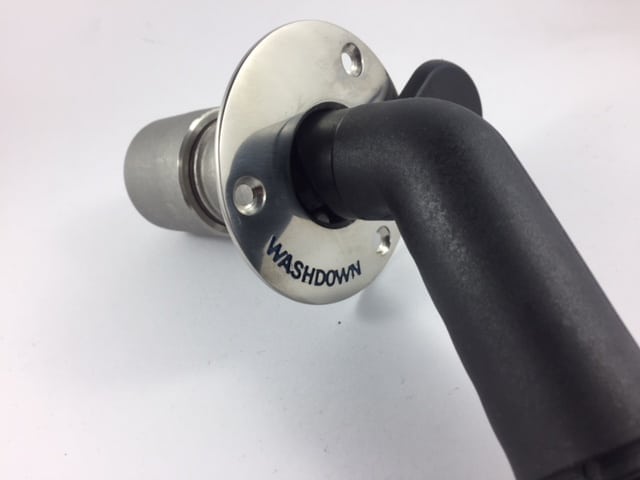

  • Angled connector is roughly 135 degrees and can be attached in the up position or a down position (down position pictured).
Dimensions:

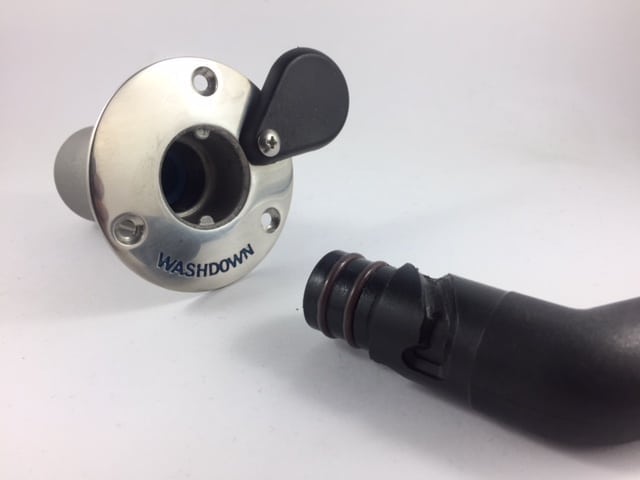

Angled Connector: 73mm diameter, 83mm high. connector 150mm long

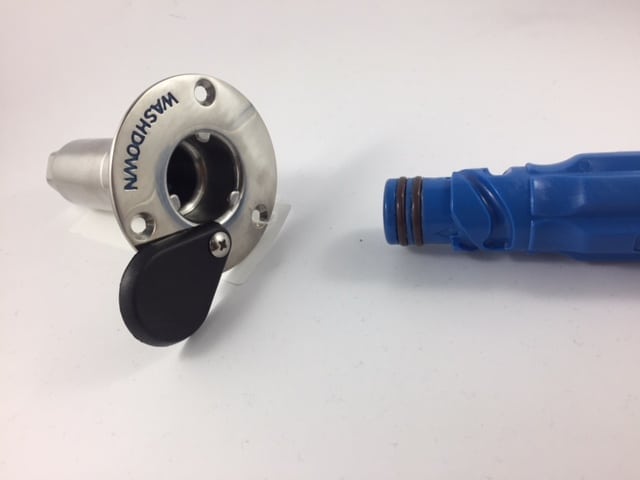

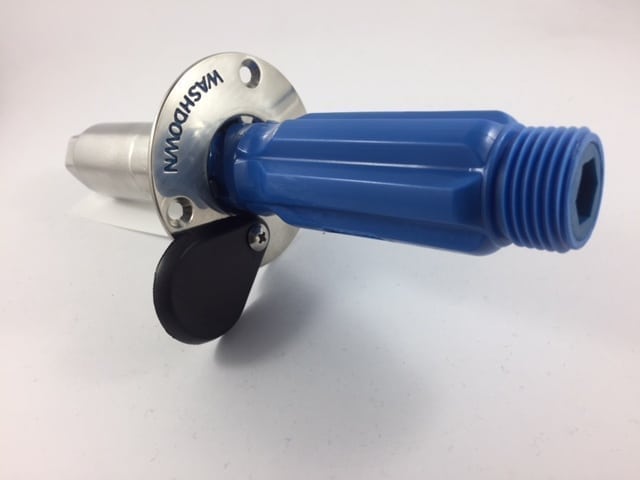

Straight connector: 73mm diameter, 95mm high. connector 140mm long
